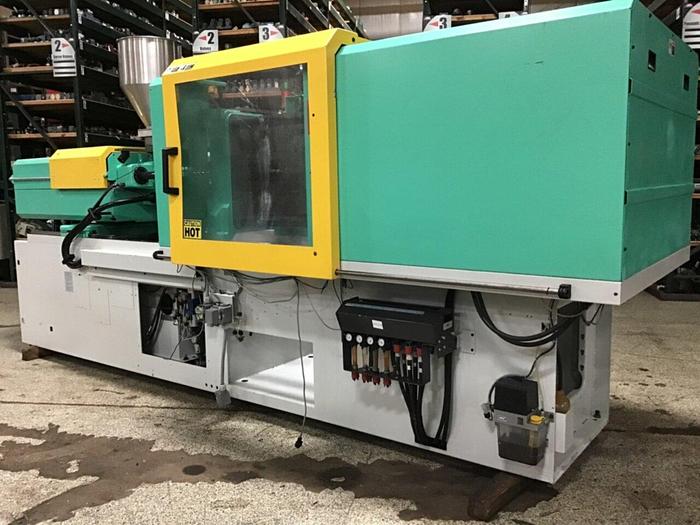

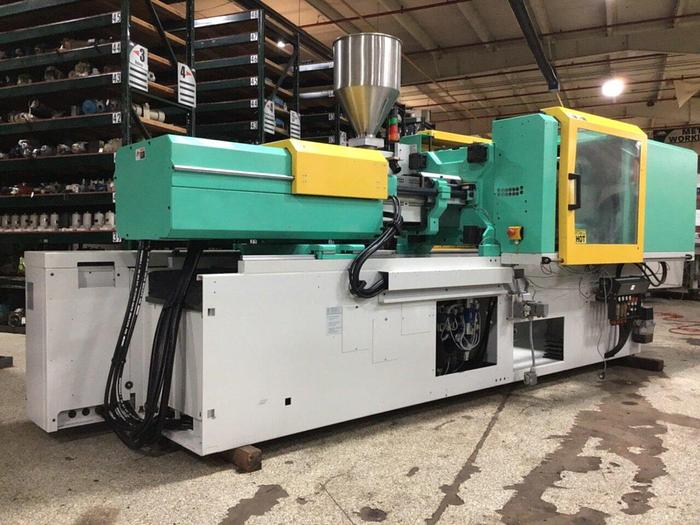

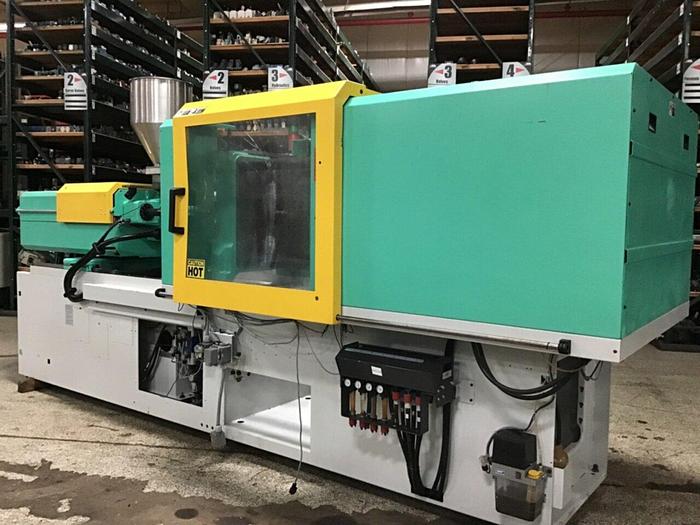

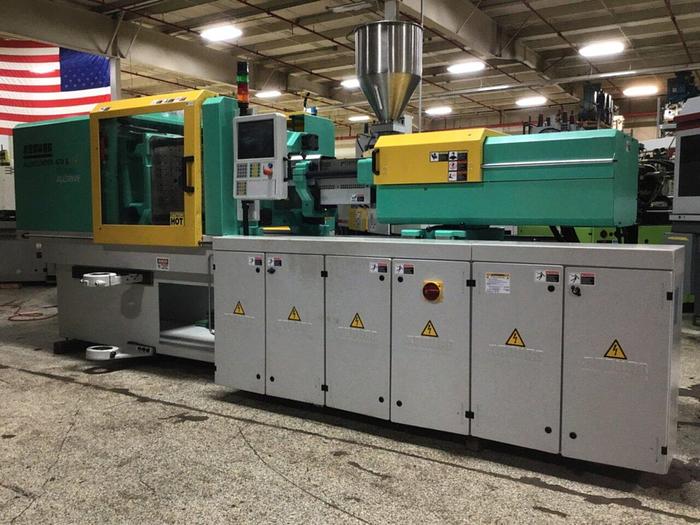

ARBURG 110 Ton Injection Molding Machine 470A 1000-400-45 USED
ARBURG 110 Ton Injection Molding Machine 470A 1000-400-45 USED
$34,500 (USD)
Upon submitting an inquiry, a representative will reach out shortly to discuss your shipping options and costs.
Available quantity:1
orCall 248-627-3135
Description

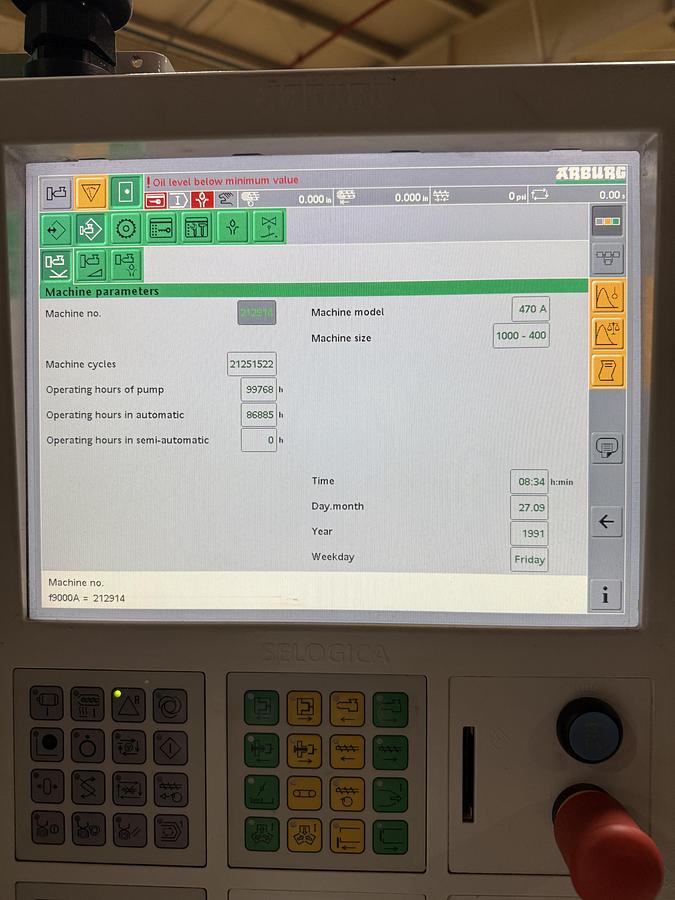

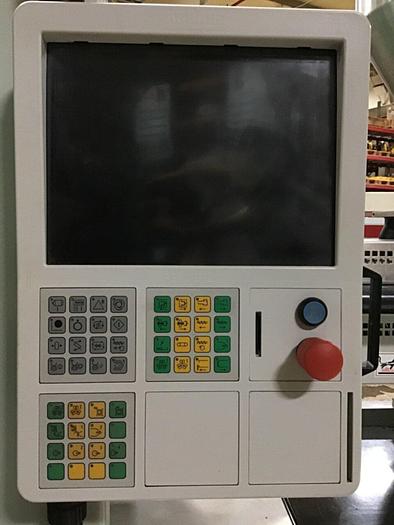

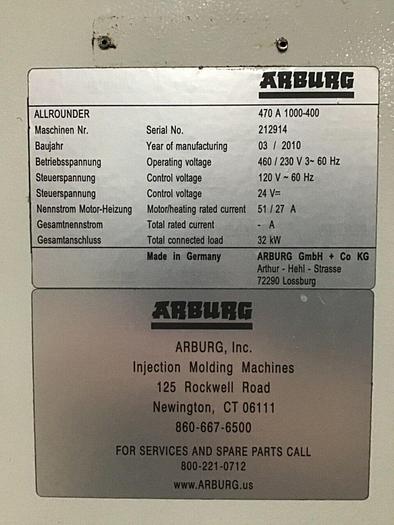

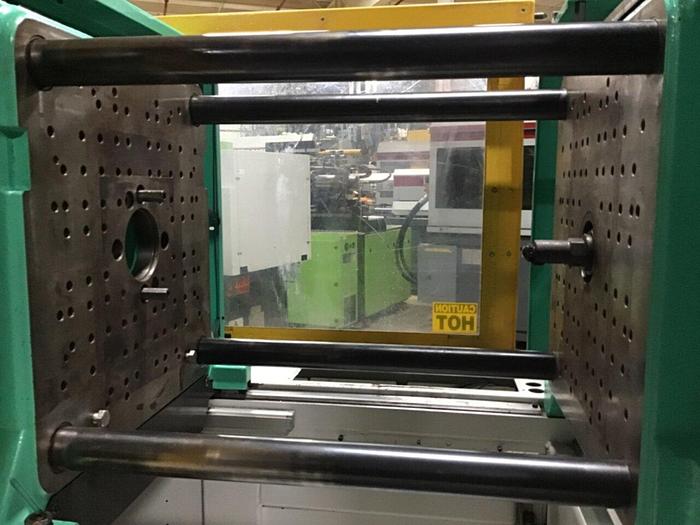

Allrounder AllDrive Model: 470A 1000-400 Serial: 212914 Year: 2010 110 Ton 8.2 Oz Shot Size Selogica Control 18.5" x 18.5" Tiebars 25.08" x 25.08" Platen 13.78" Clamp Stroke 33.46" Max Daylight 9.84"/19.69" Min/Max Mold Height 1.77" (45 mm) Screw Diameter 6.3" (160 mm) Injection Stroke 22,910 PSI (1580 Bar) Injection Pressure 9.4 kW Heater 6.89" Ejector Stroke 4.4 Ejector Tonnage
460 Volt
3 Phase
60 Hz Small Accumulator Hydraulics Air Blow with Pressure Reducer Pneumatic Core Pull Euromap 67 Robot Interface Expedited shipping services are available This piece is located at Ideal Machinery, Inc. on our showroom floor. Located at: 10230 N. Holly Rd, Holly MI 48442
Specifications
| Manufacturer | ARBURG |
| Model | 470A 1000-400-45 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 144620 |
