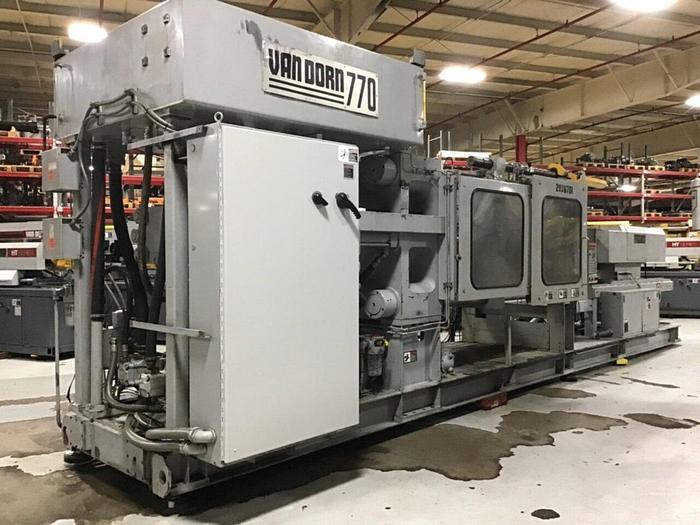

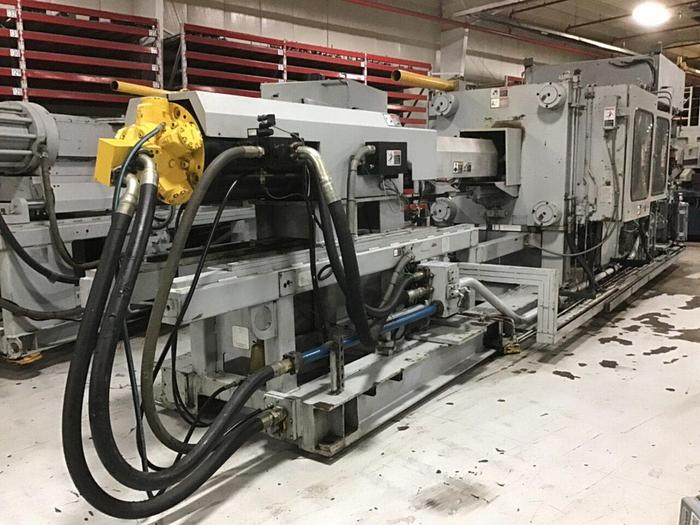

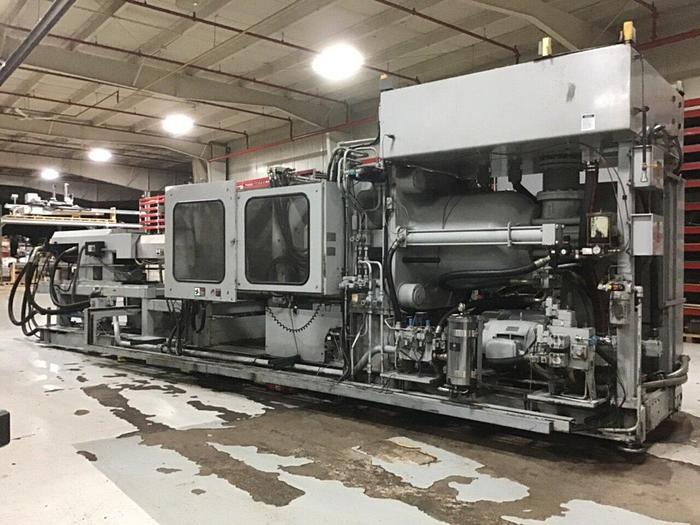

VAN DORN DEMAG 770 Ton Injection Molding Machine 770HP4300S USED
VAN DORN DEMAG 770 Ton Injection Molding Machine 770HP4300S USED
$19,500 (USD)
Upon submitting an inquiry, a representative will reach out shortly to discuss your shipping options and costs.
Available quantity:1
orCall 248-627-3135
Description
Model: 770HP4300S
Serial: 871
Year: 1997
HP Series
770 Ton
90 Oz Shot Size

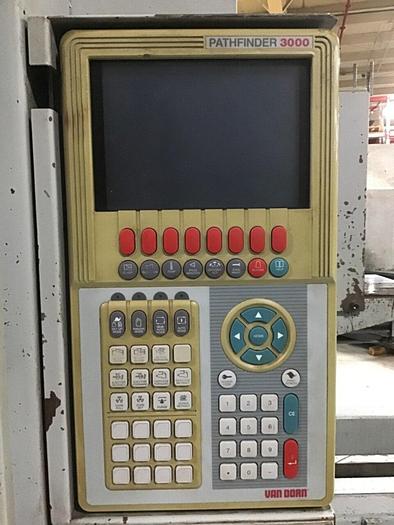

Pathfinder 3000 Control
Hydraulic Clamp
36.5" x 44.5" Tiebars
53.5" x 62" Platen
44" Clamp Stroke
72.75" Daylight Max
16" Min Mold Height
3.74" (95 mm) Screw Diameter
23,435 PSI Injection Pressure
14.96" Injection Stroke
151 RPM Screw Speed
6" Ejector Stroke
12.5 Ejector Tonnage
125 HP Motor
56 kW Heater
540 Gallon Oil Capacity
193 GPM Pump Output
460 Volt
3 Phase
60 Hz
Expedited shipping services are available This piece is located at Ideal Machinery, Inc. on our showroom floor. Located at: 10230 N. Holly Rd, Holly MI 48442
Specifications
| Manufacturer | VAN DORN DEMAG |
| Model | 770HP4300S |
| Year | 1997 |
| Condition | Used |
| Stock Number | 136773 |
