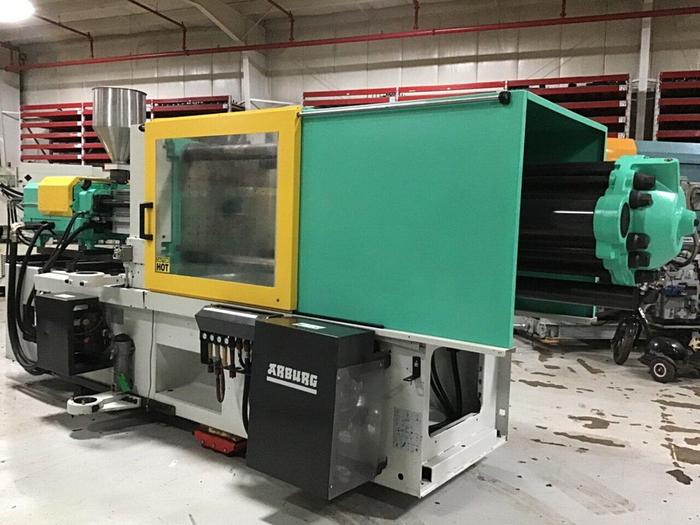

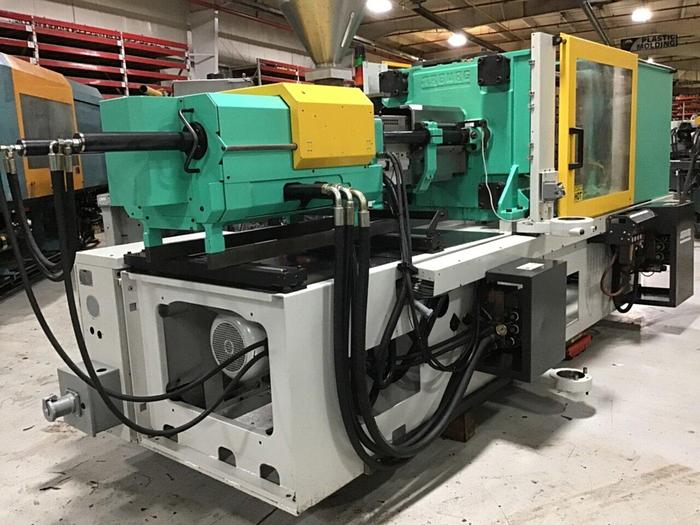

ARBURG 220 Ton Injection Molding Machine 570C 2000-800-55 USED

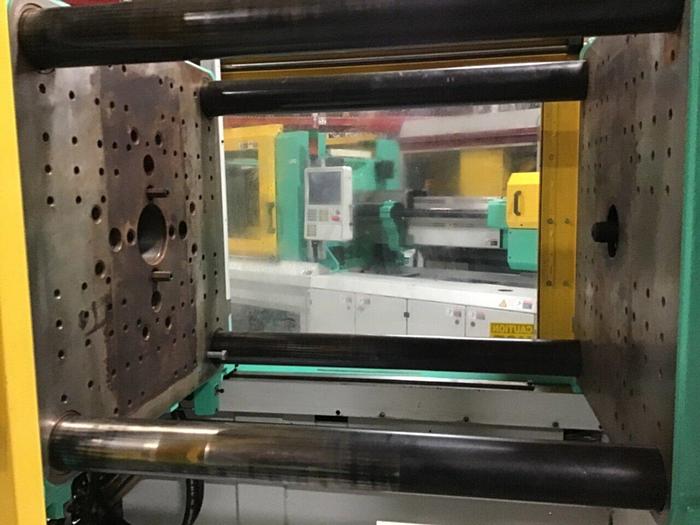

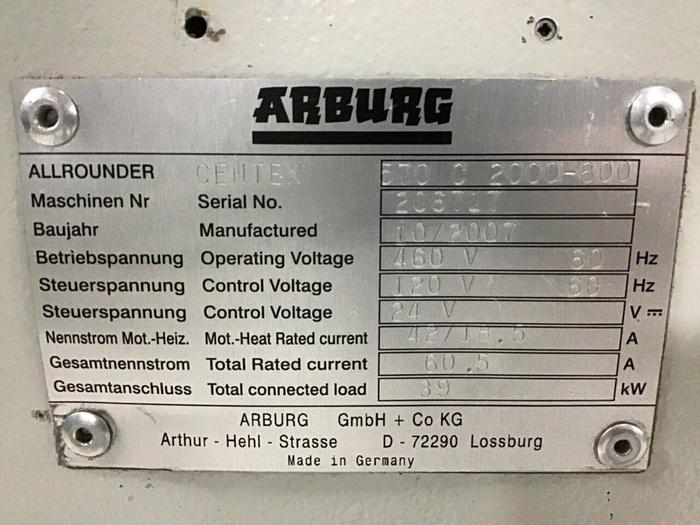

Model: 570C 2000-800 Golden Serial: 206717 Year: 2007 Allrounder Centex 220 Ton (2000 kN) 15.3 Oz (434 Gram) Shot Size Hydraulic Clamp 25.59" (650 mm) Clamp Stroke 22.44" x 22.44" (570 mm x 570 mm) Tiebars 31.30" x 31.30" (795 mm x 795 mm) Platens 37.4" (950 mm) Max Daylight 11.81" (300 mm) Min Mold Height 2.16" (55 mm) Screw Diameter 23,925 PSI (1650 Bar) Injection Pressure 7.87" (200 mm) Injection Stroke 7.26 Ton (66 kN) Ejector Force 8.86" (225 mm) Ejector Stroke 19.9 kW Heater 76.62 Gallon Oil Capacity 460 Volt 3 Phase 60 Hz Electric Actuated Core Pull with Pneumatic Pressure Reducer Hydraulic System with (2) Control Pumps Air Blow with Pressure Reducer Expedited shipping services are available This piece is located at Ideal Machinery, Inc. on our showroom floor. Located at: 10230 N. Holly Rd, Holly MI 48442
